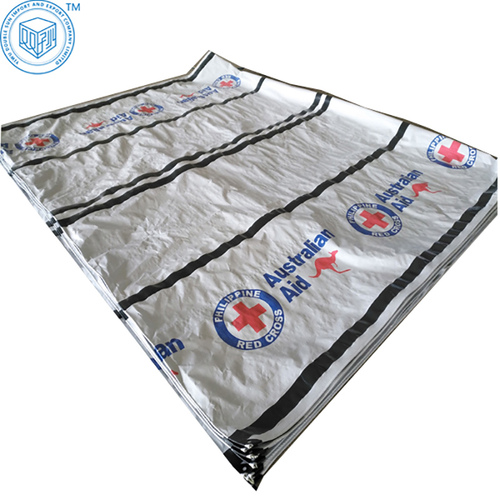

| Item Name | Tarpaulin / Plastic sheet reinforced bands,eyelets and printed |
| Model No. | DSTP- IFRC003 |
| Materials | Made of woven high-density polyethylene (HDPE) fibers, laminated on both sides with low density polyethylene (LDPE) coating. 6 bands of 7.5cm width made of woven black HDPE fibers fabric and coated with grey or black LDPE on the outside.with reinforced rims by heat sealing on all sides, (or 2 sides heat sealing ), and a PE or PP rope on the edge, inside the hem |
| Eyelets | Provided with aluminum eyelets or equivalent on four sheet sides of the single sheets at 100 cm +/-5cm centre to centre, providing very strong fixation points.
|
| Printed | Logo printed |
| Flammability: | flash point above 200 degrees C. |
| Tear strength | Minimum 100N under ISO 4674-1 2003, strip of 200x200mm, in plain sheet |
| Tensile strength | Minimum 500N and 15% to 25% elongation in warp and weft in plain sheet under ISO 1421-1. |
Tensile strength in the reinforcement bands | Minimum 700N inside the reinforcement bands as per ISO 1421-1,pulling lengthwise in a pre-punched hole of 8mm with a hook of 8mm wire diameter. To test in 2 holes in each side bands |
| Material sheet weight | 190g/m² ± 20g under ISO 3801 or by customer's needs |
| Material sheet add bands weight | Plain sheet specific weight plus 10% additional weight for the reinforcement bands under ISO 3801. Total weight from 187g/m² minimum and 231g/m² maximum Specific weight of the bands from 150g/ m² minimum and 200g/m² maximum |
| Color | white sun reflective on both sides |
| Product Type | Tarpaulin rolls | Width: 4m ± 1% |
| Length: 6m ± 1% or by customer's needs |
| Tarpaulin Piece | Width: 4m ± 1% |
| Length: 60m ± 1% or by customer's needs |
| Features | ①Waterproof and washable. It prevents contamination or damage from rain or moisture. |
| ②Tear resistant super durability minimized breakage during transportation and storage. |
| ③ Weather proof and sunproof, UV treatment is available |
| ④Mildew proof and Anti-aging. |

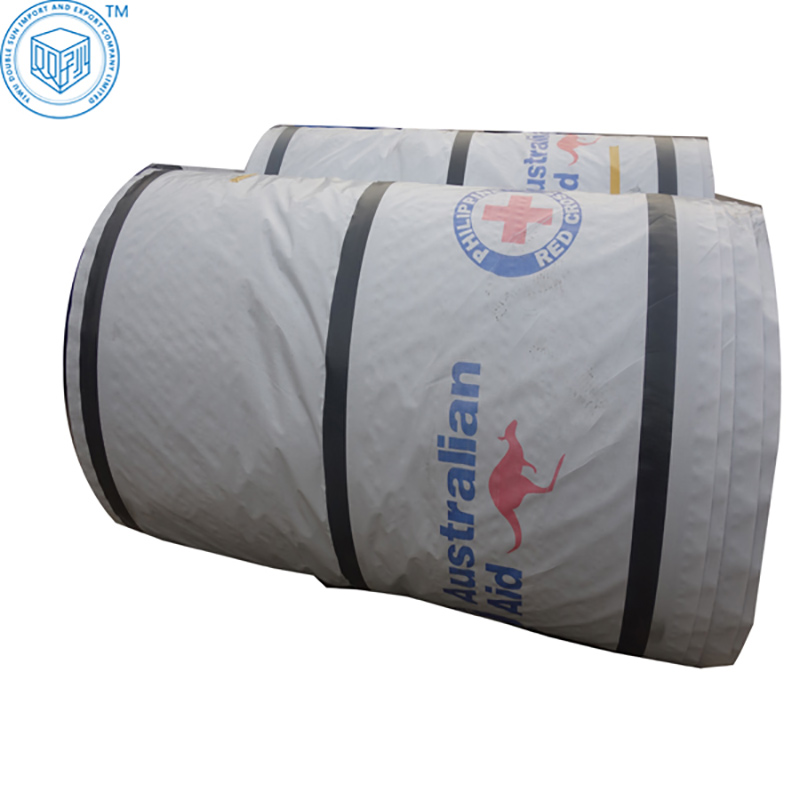

| Package | Tarpaulin rolls | Packed on hard paper tubes. |
| Then wraped by the same Tarpaulin Sheet to protect the Inner fabrics. |
| Tarpaulin Piece | Each pcs folded Tarpaulin to be packed into clear poly bag, color paper is available; |
| Several pieces packed in a bale made of the same tarpaulin sheet. |
| Container Loading Capacity | 1*20'GP (20 ton, 26CBM.) | By Roll: 17 Tons |
| By Bale: 12 Tons |
| By Carton: 9 Tons |
1*40'HQ (28 ton, 68CBM.) | By Bale: 28 Tons |
| By Carton: 20 Tons |
| Application Field | Industrial | Underground sheets, Covers for trucks, cars, boats, containers, |
| Agricultrial | Covers for timber, hay, cotton and all kinds of crops,covers for dring crops,etc. |
| Construction | Scafolddings in construction site, covers for materials, roof, road repair, fences, etc. |
| Home/Garden (D.I.Y) | Covers for Garden, backyard use covers for furniture, Gazebo tents, Dinning canopies, swimming pool covers, etc. |
