S5001200 Bag, school, students, UNICEF, 400x270x100mm
(S5001200 背包,学校里,学生用,儿童基金会,尺寸400 x 270 x 100毫米)
Technical Specifications: (技术说明)

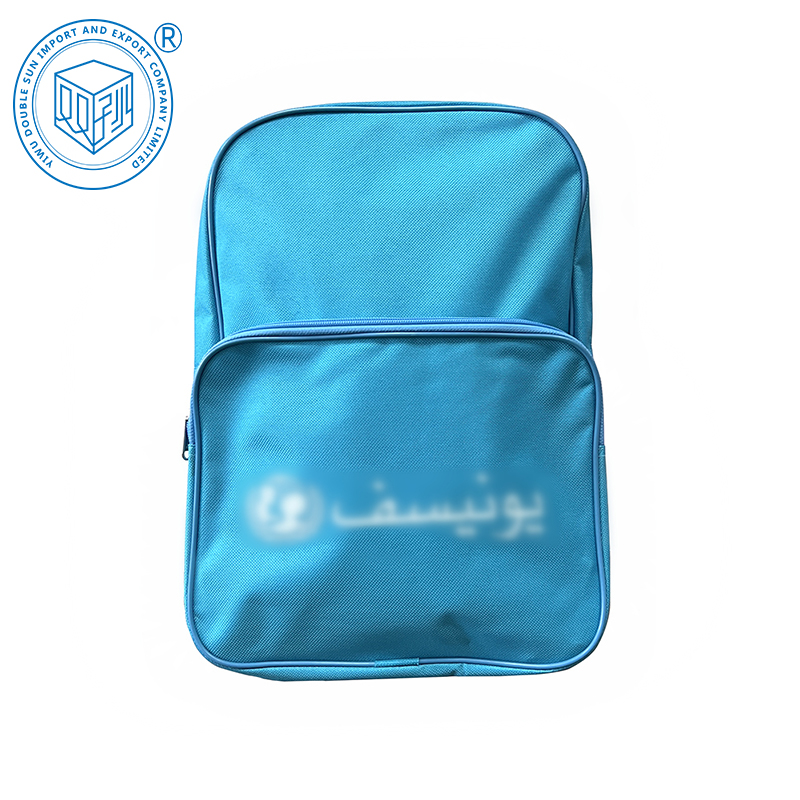

Backpack, school use, 1 main compartment, one front pocket, printed with the UNICEF logo in white and a name tag.
(学生背包,学校用,1个主要隔区,前面一个口袋,印刷白色的UNICEF标签,包的里面有一姓名标签)
Compartment 1: (隔区说明)
Size: H400 x Depth100 x W270 mm( tolerance of +/-30 mm on the L and W and 10mm on the H).
包尺寸:高400 x 深100 x 宽270 毫米(长度和宽度正负公差30毫米,深度公差10毫米)
Large compartment YKK zip closure around three sides of the compartment with a 2 way YKK zip pull. Mesh lining stitched to the base of the bag and a 1mm PVC board reinforcement secured on the base.
(主隔区为2头YKK拉链,拉链从两侧开始到顶部合龙,包里面缝纫网袋和一块1厘米PVC材料的底部缝纫固定,三边可移动的底板)
Inside Pockets: (里面网袋)
Two inner pockets; mesh sides with elastic tops, located on the back side of the main compartment.
(1个网袋,中间分开成2个,并缝纫在包里面的背面)
Compartment 2: (隔区说明)
Small pocket H230 x Depth 40 x W280 mm with side gussets, YKK zip closure around top of pocket with one zip pull.
(包外小袋子尺寸高230,深40,宽280毫米 ,YKK的单头拉链.)
Material: (材料)
1.Shell fabrics: 100% polyester, 800 x 800 denier, tightly woven and spun to resist puncturing, triple PVC/rubber blend coating. Material must measure 290GSM as a minimum when coated. The product should not be permeated by water in any of the following situations: prolonged water exposure, heavy top-down watering, forceful water pressure applications or submersion.
(面料:100%聚酯,800 x 800 D,紧凑的织布和纺线,防止外力刺破. 橡胶和PVC混合单面涂膜,涂膜后材料至少290克每平方米, 强烈的防水及水渗透处理
2.Cyan piping tape for seams: 100% polyester. Back and front seams of bag reinforced with piping.
(青色/蓝绿色骨条包边加强,100%聚酯,缝纫在包的前面和背面各边加强)

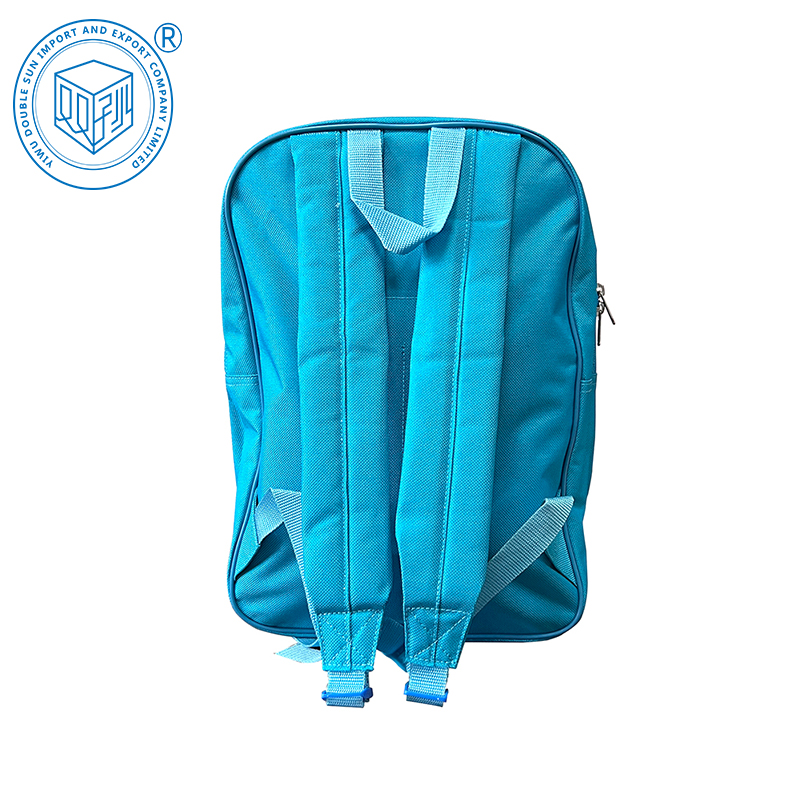

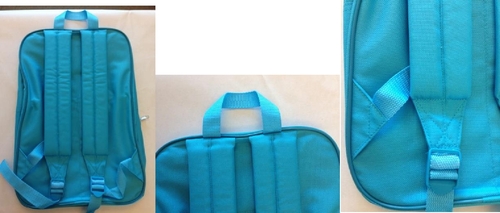

3.Padded shoulder strap: Cyan blue: 100% polyester. 60 x 320 mm (tolerance of +/-30 mm on the length). The sponge for padding should be 10mm.
(背带,内衬海绵，100%聚脂材料,尺寸宽60X长320毫米(长度公差30毫米)

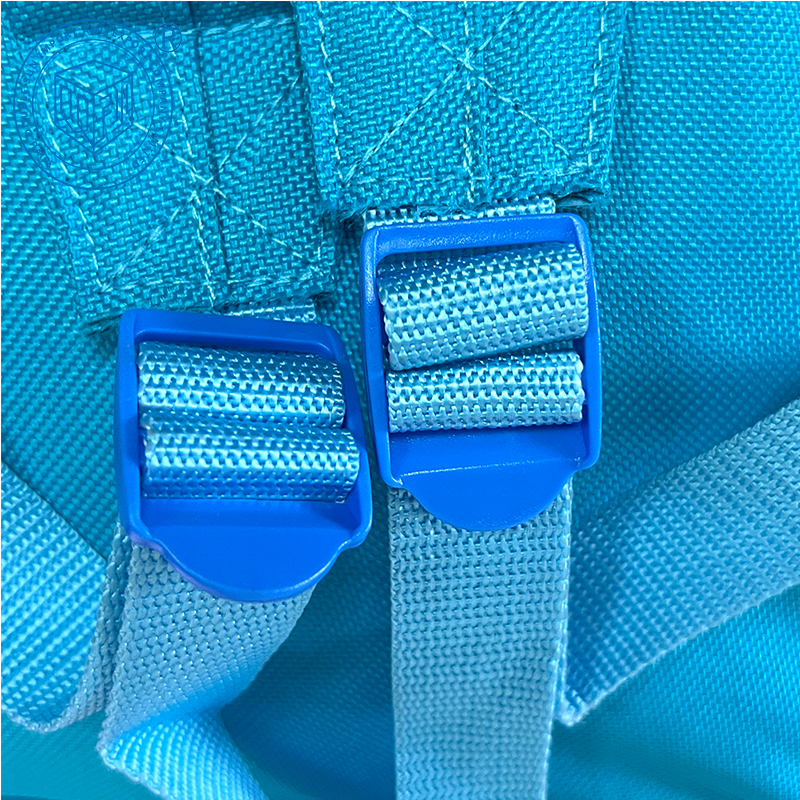

4.Lateral fixations and Length adjuster: Cyan blue PE plastic.
横向两侧连接固定背带,背带可调节长度, 青色/蓝绿色 聚乙稀材料配件
5.Adjustable straps and loop handle: Cyan blue: 100% polyester. Reinforced with X stitching and a 25 mm loop handle.
（可调节背带，和包顶部有宽25毫米手拉环， 材料100%聚脂， X缝纫每个接口加强）
6.Mesh lining: Black 100% polyester. 240 x 240 mm (tolerance of +/-30 mm) with elastic top and stitched to the base of the bag.
（黑色网袋，居中缝纫在包内底部,网口松紧带口,100%聚脂，尺寸240 X 240 毫米（公差30毫米）
7.Zips: Metal YKK brand zipper. YKK Zip pull approx. 30mm (tolerance of +/-5 mm). Two different types of zipped fastenings are required. Main compartment: reversible two-way zippers, with metal sliding tabs. The front pocket: one-way zipper, with metal sliding tabs. The zips in the main compartment to open to approximately 180 mm from the bottom to ensure that A4 sized books can be easily inserted and removed without restriction.
(拉链为YKK牌子拉链,金属拉链轨道,30毫米+/-5毫米拉头,主隔区为双头拉链,小袋子为单头拉链, 小袋子开口大约180毫米,可以保证啊A4纸大小的书容易放入和拿出)
8.Base reinforcement: A bottom plate of 1 mm thick PVC board stitched and secured to the base inside a polyester sleeve, dimensions 90mm x 230 mm +/- 5mm. One long side of the plate should be stitched and secured to the base of the bag inside a polyester sleeve and the other long side to be free to move, to ensure that the plate can be flattened when the bag is not in use.
(包内部最下面有一块加强底板, 尺寸90毫米X 230毫米+/-5毫米, PVC材料,厚度1毫米,外面套一层布,并把长的一边缝纫固定在底部,另外三面可移动)

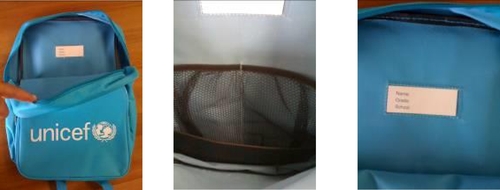

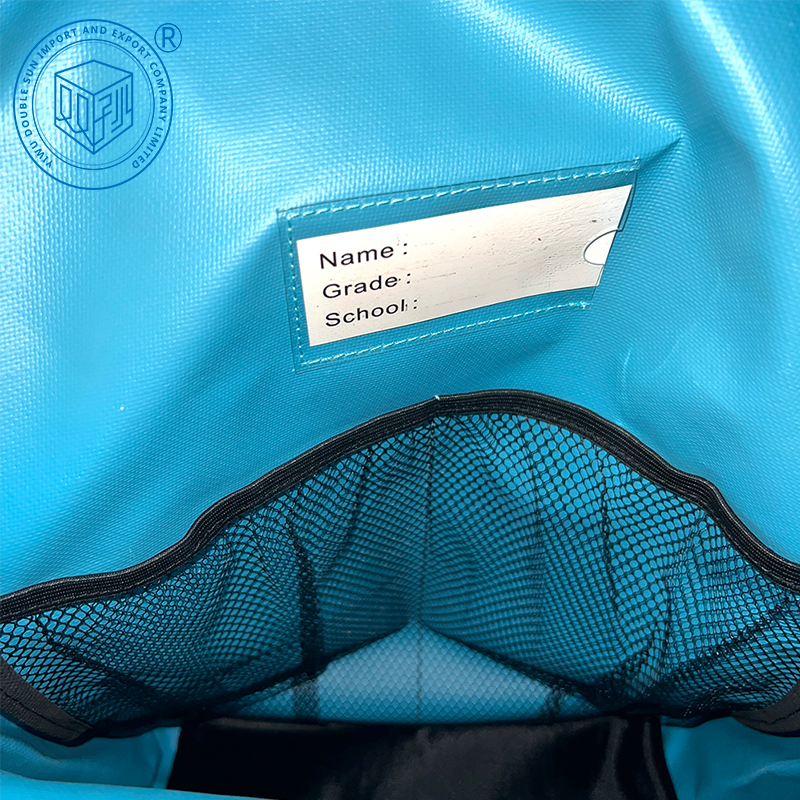

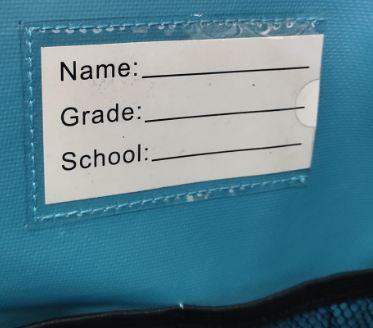

9.Name tag: 300GSM wood free non coated paper. A transparent plastic pocket, which should be placed inside the bag on the top of the back side. Dimensions of name tag: width 80 mm x height 40mm. Lining for name tag: PU. The plastic pocket to be supplied with a 300GSM wood free non coated paper, printed with 3 lines of text (Name, Grade and School in English). The side of the plastic pocket should be open on one side (along the 40mm) and the card sized to ensure that it can easily be inserted and removed while remaining secure during use. The English script character boundaries distinctive with no misalignment to ensure easy and correct reading.
姓名牌袋子 : 包的内部底部,在网袋上面缝纫一个PU材料的透明袋,尺寸宽80毫米,高40毫米, 并三边缝住,开口在高40的其中一面(正对包的右侧)
姓名牌: 300克白板纸,无涂膜. 上面印刷 三行 Name .: …………….
Grade. : …………….
School : ……………
姓名纸容易放入和拿出从姓名牌袋子中.
Stitching of shell:
Double stitching required and thread quality to be suitable for the material and use specified. Stitching at the ends of the zippers, the handle and the straps to be well reinforced. Stitched length must be maximum 33 stitches and minimum of 26 stitches per 10 cm. All material edges to be tucked and stretched to prevent fraying.
(双线缝纫,缝纫线质量和颜色符合材料,缝纫拉链尾部加强,缝纫每10毫米长度必须至少26针,到33针,所有地方线头整洁, 产品所有边缘包起来防止磨损)
Capacity of Bag: Suitable to carrying a weight of 10kg.
(包的容量: 适合搬运15公斤的)
Color: 100% Cyan blue Pantone 17-4540 Hawaiian Ocean for dyed textiles
(包颜色: 100%青色/蓝绿色 ,国际潘通色号17-4540 夏威夷海洋蓝 用于染色纺织物)
UNICEF logo: （印刷标志）
(The word 'unicef' written in small letters, plus the mother and child emblem) printed on the front pocket, centered and running 80% of the length.
（标签分别印在产品前面和后面的外面， 用白色印刷，字体如下 ：
UNICEF标签 “unicef”小写字体大约2.5厘米高 + 4.5厘米高UNICEF图像，总长度大约21厘米(包总长度的80%)
Packaging and Labelling: （包装说明）
One bag, neatly packed in an individual transparent polypropylene bag, sealed on the three sides, with a non-permanent self-adhesive closure flap (which closes from the top) on the top reverse side. The plastic bags should be sturdy and be resistant to puncturing and should be easy to open and close.
每个包包装在透明的一边开口的自封袋内
自封透明袋必须牢固的材料，自封胶质量要好，容易打开，容易封口。
