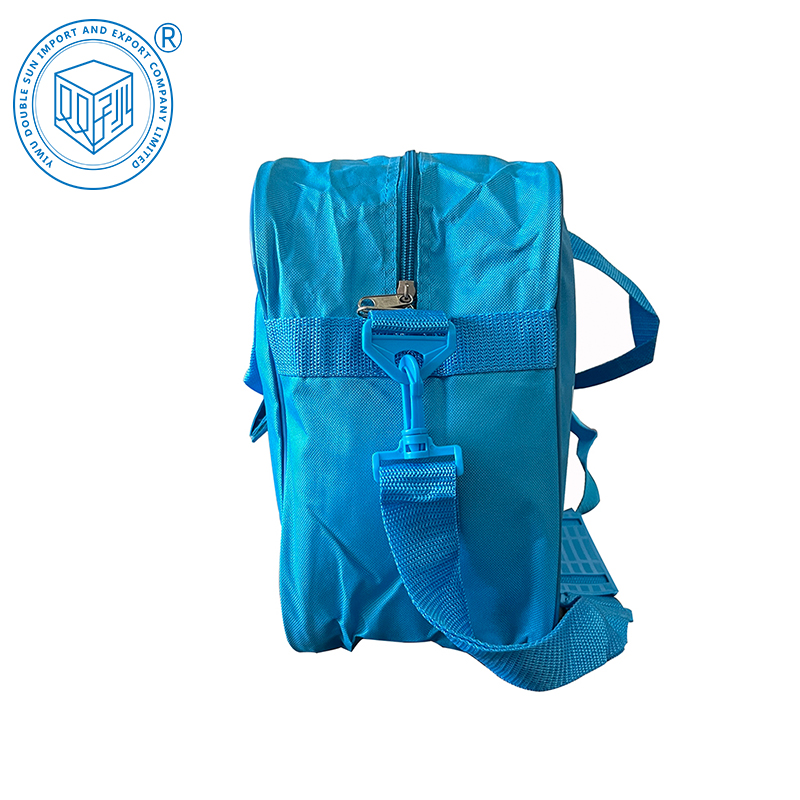

S5001000 Bag, UNICEF, blue polyester, 360x230x610mm
(S5001000 手提包,儿童基金会, 夏威夷海洋蓝,360x230x610mm)
Technical Specifications: (技术说明)
UNICEF bag, printed with UNICEF logo in white
(儿童基金会 手提包,印刷白色UNICEF标志)
Components: (内部说明)
Carrying bag, rectangular; two handles reinforced with a sponge handle-strap which fastens with Velcro, plus a detachable shoulder strap.
（长方形手提包，两边加强的手提带，手提带上一内衬海面手柄，用尼龙扣， 另外增加一个可拆卸肩带）
Size: approx. L610 x W230 x H360 mm (tolerance of +/- 50 mm).
（包尺寸：长610 x 宽230 x 高360 毫米 （正负公差50毫米）
Material: （材料）
1.Shell fabrics: 100% polyester, 1200 x 600 denier, tightly woven and spun to resist puncturing, triple PVC/rubber blend coating material must measure 340GSM as a minimum when coated. The product should not be permeated by water in any of the following situations: prolonged water exposure, heavy top-down watering, forceful water pressure applications, or submersion.
(面料:100%聚酯,1200 x 600 D,紧凑的织布和纺线,防止外力刺破. 橡胶和PVC混合单面涂膜,涂膜后材料至少340克每平方米, 强烈的防水及水渗透处理)
2.Cyan piping tape for seams: 100% polyester. Back and front seams of bag reinforced with piping.
(青色/蓝绿色骨条包边加强,100%聚酯,缝纫在包的前面和背面各边加强)

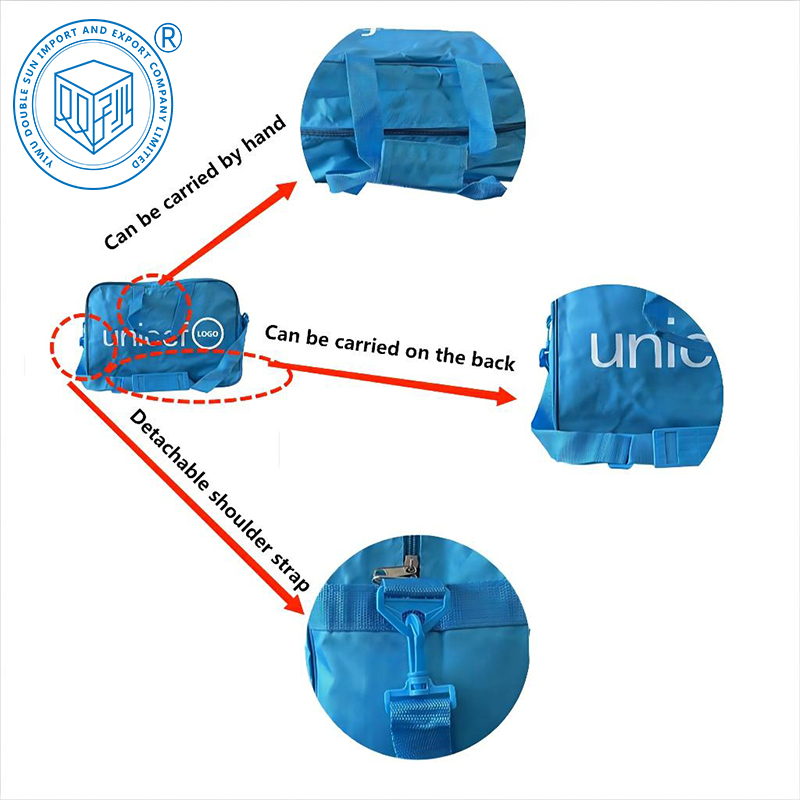

3.Shoulder strap: Cyan blue: 100% polyester. With one 40 mm tolerance of +/- 5 mm wide shoulder strap that is adjustable in length, total length approximately 1200 mm (tolerance of +/- 50 mm).
(肩带, 青色/蓝绿色,100%聚酯, 长1200 x宽 40毫米(长度公差50毫米,宽度公差5毫米) ,肩带上有4毫米橡胶肩垫,肩带为用X缝纫接口)
4.Lateral fixations and Length adjuster: Cyan blue PE plastic.
(横向两侧连接固定肩带,肩带可调节长度, 青色/蓝绿色 聚乙稀材料配件)

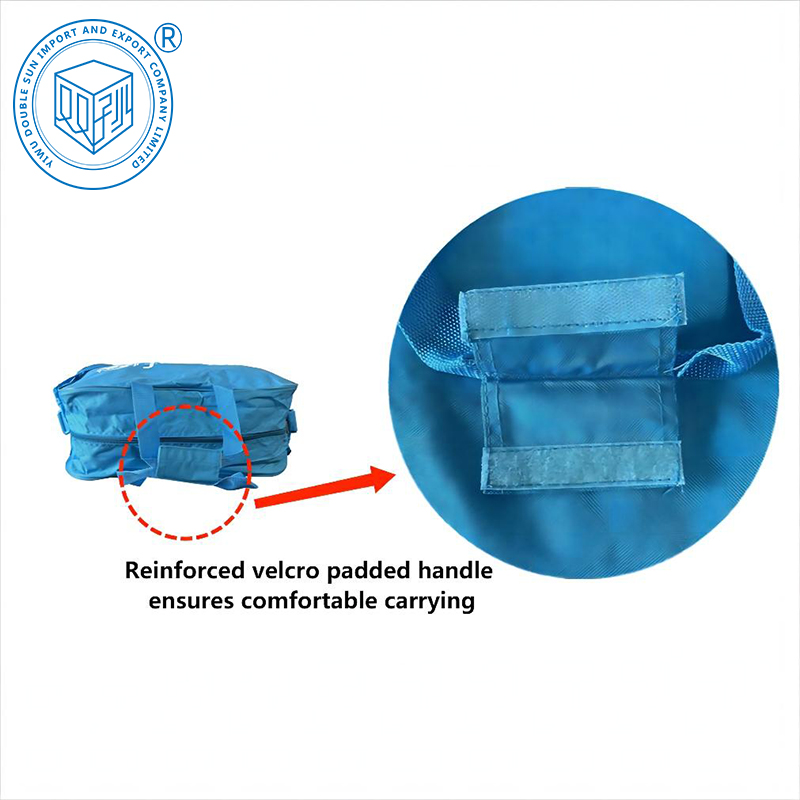

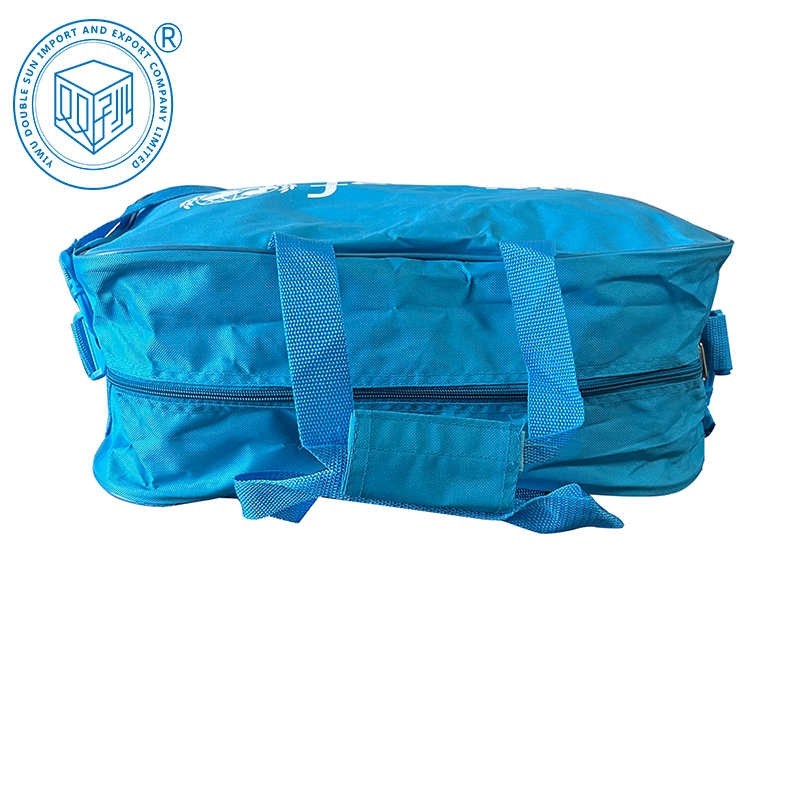

5.Carrying handle: Cyan blue: 100% polyester. Two fixed carrying handles, approximately 40 mm wide (tolerance of +/- 5 mm) reinforced with X stitching at the top. A foam handle with Velcro at the top of the bag and two strong lateral mechanisms for a 40 mm(tolerance of +/- 5 mm) x 1200mm(tolerance of +/-30 mm on the length).
（手提手柄 : 青色/蓝绿色，100%聚酯,2条固定的手带,用X缝纫手带拉口处,手带宽度40毫米正负5毫米,配有一手柄内衬海绵加固,带尼龙粘衬搭扣,手带长度每条长1200 x宽 40毫米(长度公差50毫米,宽度公差5毫米)
6.Zips: Zinc alloy. 2 zip pulls approx. 30mm (tolerance of +/-5 mm) .
(拉链 :锌合金材料, 划行拉链,拉链头30毫米(正负5毫米公差) 2个坚实的拉链头
,拉链在顶面中间)
7.Base reinforcement: A removable bottom plate of 1 mm PVC board to the base, dimensions 600 x 230mm (tolerance of +/- 50 mm). One long side of the plate should be attached to the base of the bag and the other long side to be free to move, to ensure that the plate can be flattened when the bag is not in use.
(包内底部加强板 : 可移动底板,1毫米厚PVC,尺寸600 X 230毫米(正负50毫米), 把板长的其中一边缝纫在包的底部(另外三面不需要固定),以便包收起来后,可以移动板为平面)
Stitching: (缝纫方法)
Double stitching required and thread quality to be suitable for the material and use specified. Stitching at the ends of the zippers, the handle and the straps to be well reinforced. Stitched width should be maximum of 3 mm. All material edges to be tucked and stretched to prevent fraying.
(双线缝纫,缝纫线质量和颜色符合材料,缝纫拉链尾部加强,缝纫宽度最大3毫米,所有地方线头整洁, 产品所有边缘包起来防止磨损)
Capacity of Bag: Suitable to carrying a weight of 15kg.
(包的容量: 适合搬运15公斤的)
Color: 100% Cyan blue Pantone 17-4540 Hawaiian Ocean for dyed textiles
(包颜色: 100%青色/蓝绿色 ,国际潘通色号17-4540 夏威夷海洋蓝 用于染色纺织物)

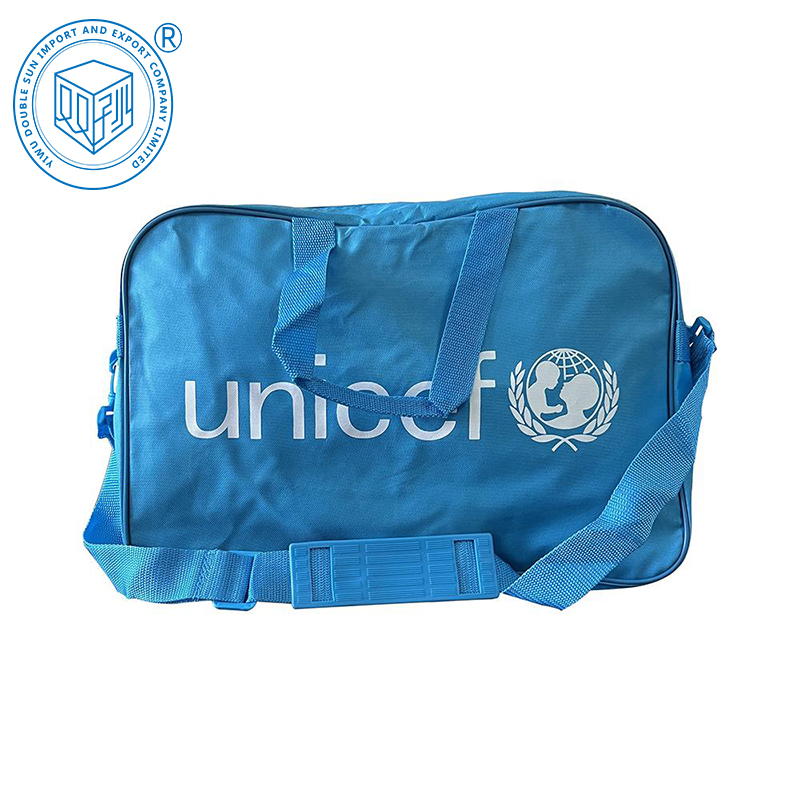

Logo: （印刷标志）
UNICEF logo and Position: On each 610 x 360 side (i.e. 1 logo on each side), the following should be printed in white: UNICEF logo: (The word 'Unicef' written in lower-case (small) letters, plus the mother and child emblem). Length of logo: Approx 210mm.
（标签分别印在产品前面和后面的外面， 用白色印刷，字体如下 ：
UNICEF标签 “unicef”小写字体大约2.5厘米高 + 4.5厘米高UNICEF图像，总长度大约21厘米
Packaging and Labelling: （包装及麦头说明）
The bag must be delivered with the shoulder strap packed in the inside bag.
One bag, neatly packed in an individual transparent polypropylene bag, sealed on the three sides, with a non-permanent self-adhesive closure flap (which closes from the top) on the top reverse side. The plastic bags should be sturdy and be resistant to puncturing and should be easy to open and close.
肩带拆开放在包里面
每个包包装在透明的一边开口的自封袋内
自封透明袋必须牢固的材料，自封胶质量要好，容易打开，容易封口。
Please also refer to the General Packing Requirements.
